In this tutorial we will create a simple Go HTTP server and instrumentation it by adding a counter metric to keep count of the total number of requests processed by the server.
Here we have a simple HTTP server with /ping
endpoint which returns pong
as response.
package main
import (
"fmt"
"net/http"
)
func ping(w http.ResponseWriter, req *http.Request){
fmt.Fprintf(w,"pong")
}
func main() {
http.HandleFunc("/ping",ping)
http.ListenAndServe(":8090", nil)
}
Compile and run the server
go build server.go
./server

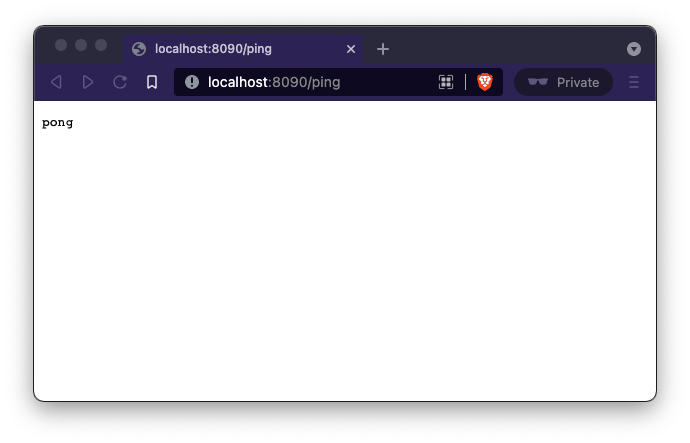

Now open http://localhost:8090/ping
in your browser and you must see pong
.
Now lets add a metric to the server which will instrument the number of requests made to the ping endpoint,the counter metric type is suitable for this as we know the request count doesn’t go down and only increases.
Create a Prometheus counter
var pingCounter = prometheus.NewCounter(
prometheus.CounterOpts{
Name: "ping_request_count",
Help: "No of request handled by Ping handler",
},
)
Next lets update the ping Handler to increase the count of the counter using pingCounter.Inc()
.
func ping(w http.ResponseWriter, req *http.Request) {
pingCounter.Inc()
fmt.Fprintf(w, "pong")
}
Then register the counter to the Default Register and expose the metrics.
func main() {
prometheus.MustRegister(pingCounter)
http.HandleFunc("/ping", ping)
http.Handle("/metrics", promhttp.Handler())
http.ListenAndServe(":8090", nil)
}
The prometheus.MustRegister
function registers the pingCounter to the default Register.
To expose the metrics the Go Prometheus client library provides the promhttp package.
promhttp.Handler()
provides a http.Handler
which exposes the metrics registered in the Default Register.
The sample code depends on the
package main
import (
"fmt"
"net/http"
"github.com/prometheus/client_golang/prometheus"
"github.com/prometheus/client_golang/prometheus/promhttp"
)
var pingCounter = prometheus.NewCounter(
prometheus.CounterOpts{
Name: "ping_request_count",
Help: "No of request handled by Ping handler",
},
)
func ping(w http.ResponseWriter, req *http.Request) {
pingCounter.Inc()
fmt.Fprintf(w, "pong")
}
func main() {
prometheus.MustRegister(pingCounter)
http.HandleFunc("/ping", ping)
http.Handle("/metrics", promhttp.Handler())
http.ListenAndServe(":8090", nil)
}
Run the example
go mod init prom_example
go mod tidy
go run server.go

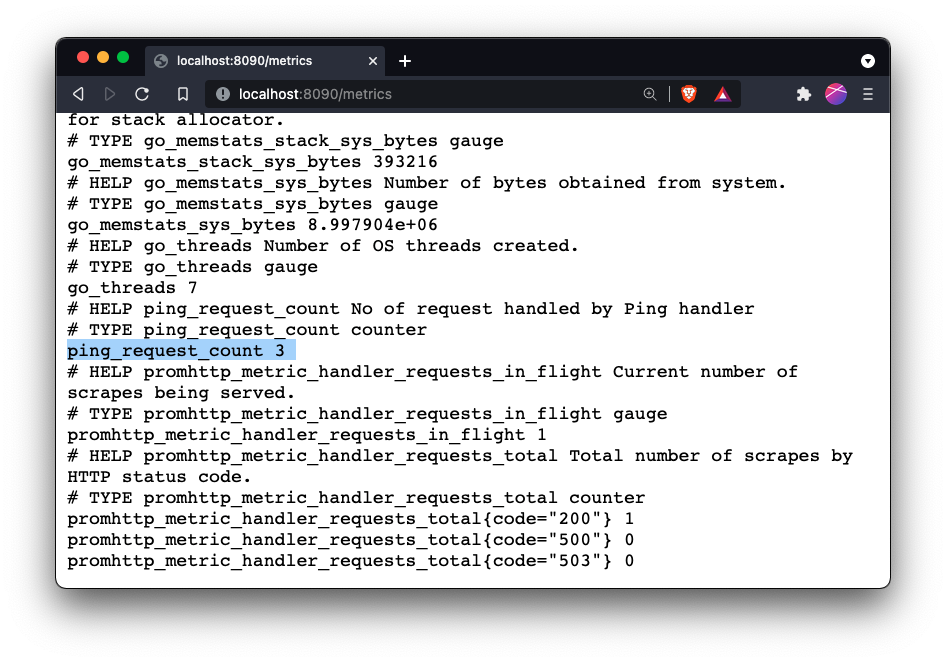

Now hit the localhost:8090/ping endpoint a couple of times and sending a request to localhost:8090 will provide the metrics.
Here the ping_request_count
shows that /ping
endpoint was called 3 times.
The Default Register comes with a collector for go runtime metrics and that is why we see other metrics like go_threads
, go_goroutines
etc.
We have built our first metric exporter. Let’s update our Prometheus config to scrape the metrics from our server.
global:
scrape_interval: 15s
scrape_configs:
- job_name: prometheus
static_configs:
- targets: ["localhost:9090"]
- job_name: simple_server
static_configs:
- targets: ["localhost:8090"]
prometheus --config.file=prometheus.yml
